The CNC router is suitable for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The CNC router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Technical Parameters
| MODEL | 3040 CNC router | |||
| Attribute | 3040T | 3040Z | 3040S | |
| Type of screw | 1404 Trapezoidal Screw |
1605 Ball Screw |
1605 Ball Screw |
|
|
Machine Dimensions: |
660X570X450mm |
|||
|
Rack material: |
6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.) |
|||
|
Engraving area: |
400X300mm |
|||
|
Z-Axis Stroke: |
60mm, Engraving depth depends on the length of the tool edge |
|||
|
Acceptable material thickness: |
≤60mm |
|||
|
Rail type: |
Chrome plate shaft + Linear Bearings, Surface hardening 61HRC |
|||
| Spindle motor: | 500W / 800W / 1500W / 2200W optional | |||
|
Collet type: |
ER11,1/8″(3.175mm) Collet |
|||
|
Stepper motor and drive: |
two-phase hybrid stepping motor 3A/PHASE,150N.cm, 8 segments drive. |
|||
|
Maximum operating speed: |
4000mm/min (Engraving speed : 300-3000mm/min) |
|||
|
Repeat positioning Accuracy: |
≤0.03mm |
|||
|
Software Compatibility: |
Mach3/Emc2/K cam, (Type3,Wentai, Art CAM, copper cam) |
|||
|
Command code: |
G code/.nc/.ncc/.tab/.txt |
|||

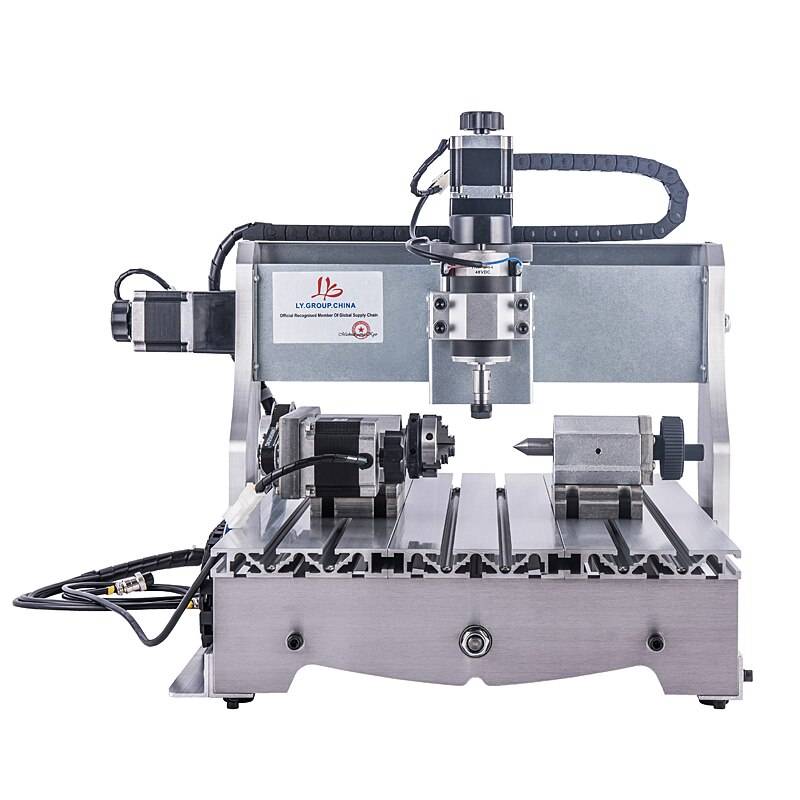

| Rotation Axis (4thAxis)
Description: |
Chuck Size: 50mm self-centering chuck
Center height: H = 51mm Clamping diameter: 50mm or less Deceleration mode: synchronous wheel/belt Deceleration ratio: 4:1 Stepper motor: NEW 57 type/3A Stepper Drive: T65-axis drive Positioning accuracy: 0.075 ° Weight: 4kg |
|||
Packing list
1× 3040 CNC Engraving machine
1× Control box
1× Power cable
1× Tool box and tools
3× Axis motors
1× CD of manual and software MACH3 (if missing, may be lost in customs, please contact us)

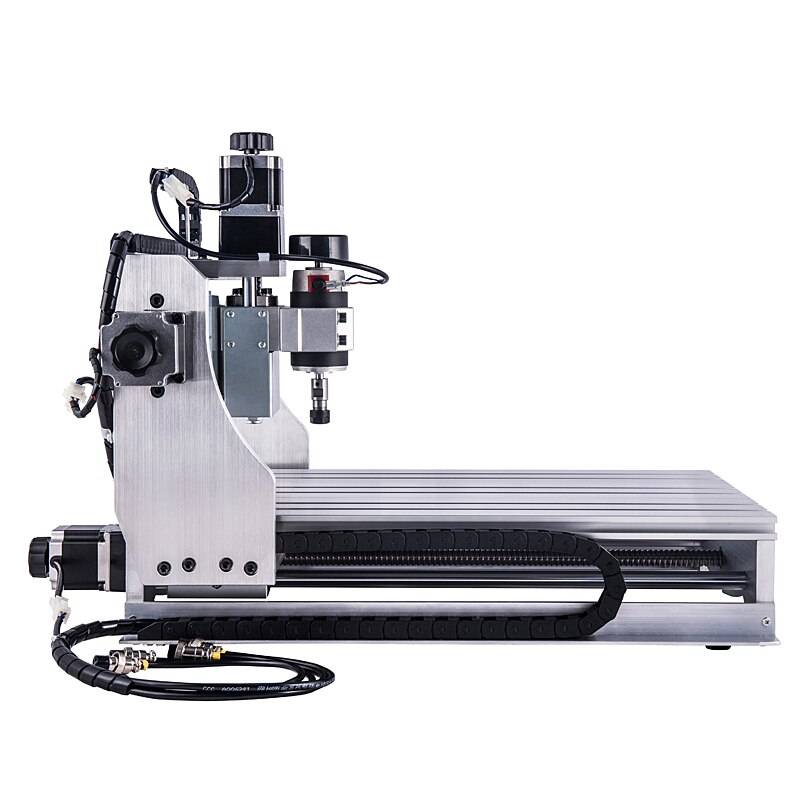

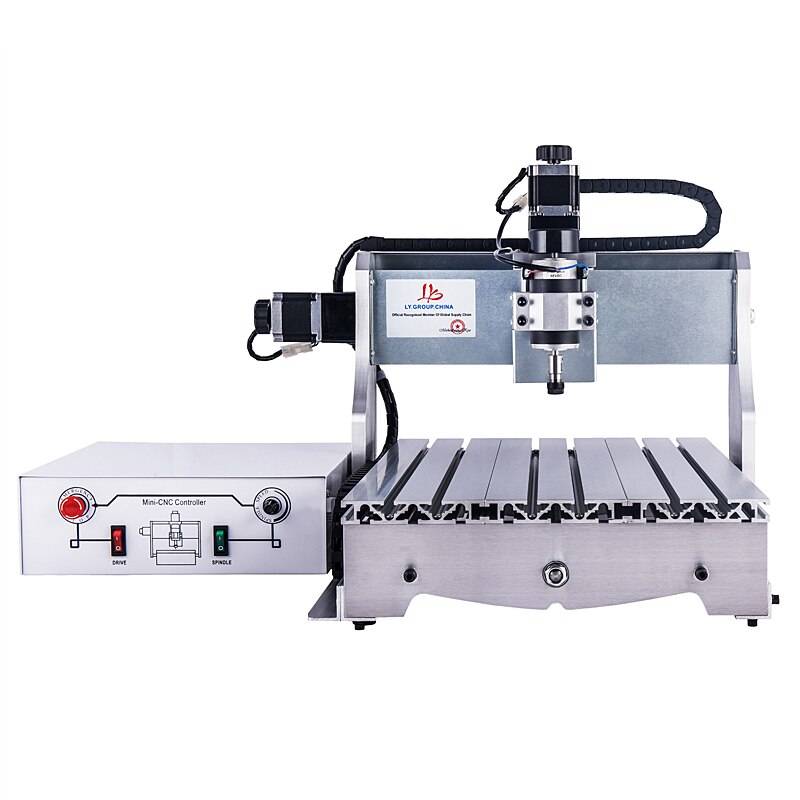

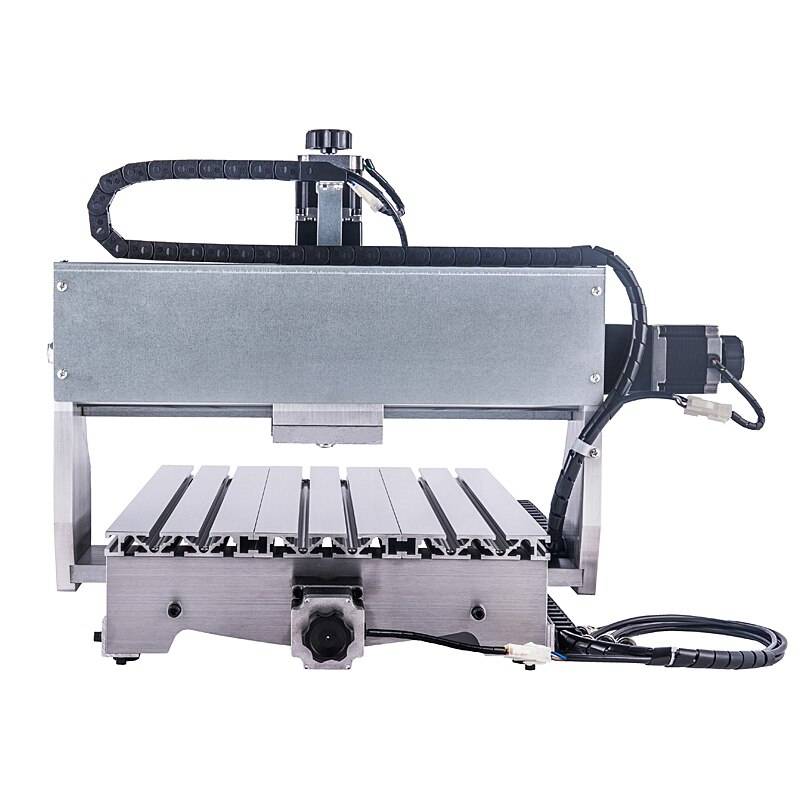

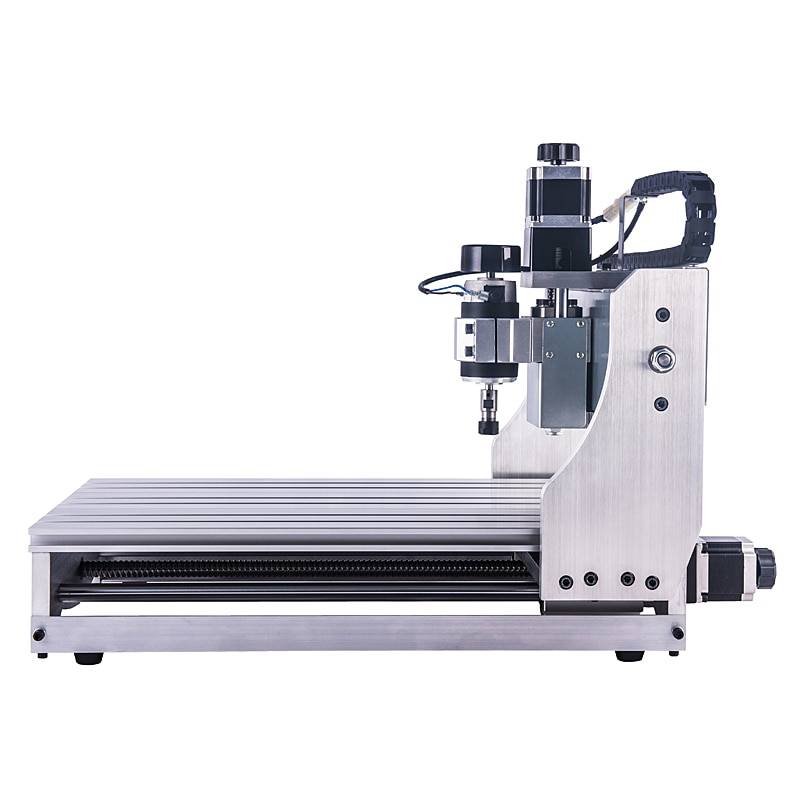

Item pictures
