Unleash Precision and Power with Our CNC Fiber Laser Cutting Machine!

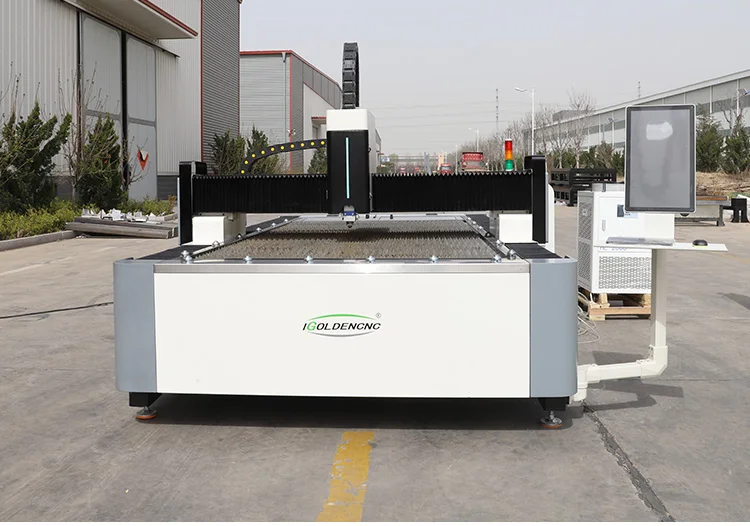

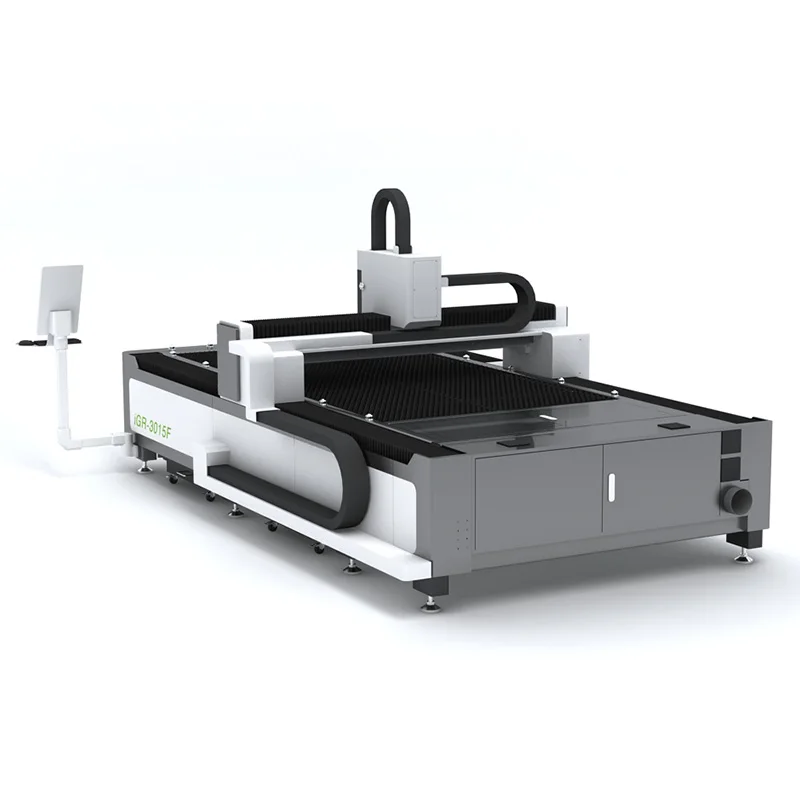

Engineered for superior performance, the 3015 CNC Fiber Laser Cutting Machine is perfect for cutting various sheet metals with unmatched precision. Featuring a robust laser power range from 500W to 6000W, driven by a servo motorand powered by an IPG laser generator, this machine ensures fast, accurate cuts in any industrial setting. Certified with CE and operating at Three-phase 380V, it’s designed for heavy-duty applications, offering a large 3015mm working area.
Upgrade your production with cutting-edge fiber laser technology today! Get yours now for our incredible price with free shipping!
|
Model |
3015 fiber laser cutting machine |
|
|
Working area/ Tube length |
3000*1500mm/ 6000mm |
|
|
X axis stroke |
1500mm |
|
|
Y axis stroke |
3000mm |
|
|
Z axis stroke |
300mm |
|
|
Tube diameter |
20-220mm |
|
|
Accuracy |
X, Y axis positioning accuracy |
0.05mm |
|
X, Y axis repositioning accuracy |
0.03mm |
|
|
Speed |
W axis rotate angle |
n*360 |
|
W axis max. ratate speed |
80rpm |
|
|
X, Y axis max. running speed |
150m/min |
|
|
U axis max. positioning speed |
800mm/s |
|
|
X, Y axis max. accelerated speed |
1.5G |
|
|
Power supply |
Phase |
3 |
|
Nominal voltage |
380V |
|
|
Frequency |
50/60Hz |
|
|
Protection grade |
IP65 |
|
|
Machine body |
Max. working loading |
1000kg |
|
Body weight |
2600kg |
|
|
Size(L*W*H) |
8060*3000*1965mm |
|
|
Laser power |
500w/ 750w/ 1000w/ 1500w/ 2000w/ 3000w/ 4000w/ 5000w/ 6000w/ 8000w/ 10000w/ 12000w |
|
|
Worktable optional |
4000*1500mm/ 4000*2000mm/ 6000*2000mm/ 6000*2500mm |
|
|
Tube length optional |
3000mm/ 9000mm |
|
