Features
- Metric and Inch thread ability
- Variable spindle speed of 50-2500 RPM
- All metal gears, shell and hand wheel
- High precision, able to turn out standard qualified works
- 1.1KW strong power, 400mm (15-3/4″) distance center
- Automatic tool, infinitely variable, professional tool post
- Telescopic sets with scale
- Wear-resistant, durable, accurate and professional
Specification
- Spindle wall thickness: 6mm
- Spindle outer diameter: 50mm
- Motor Power:1100W Brushless motor
- Gross Weight: 75 KG

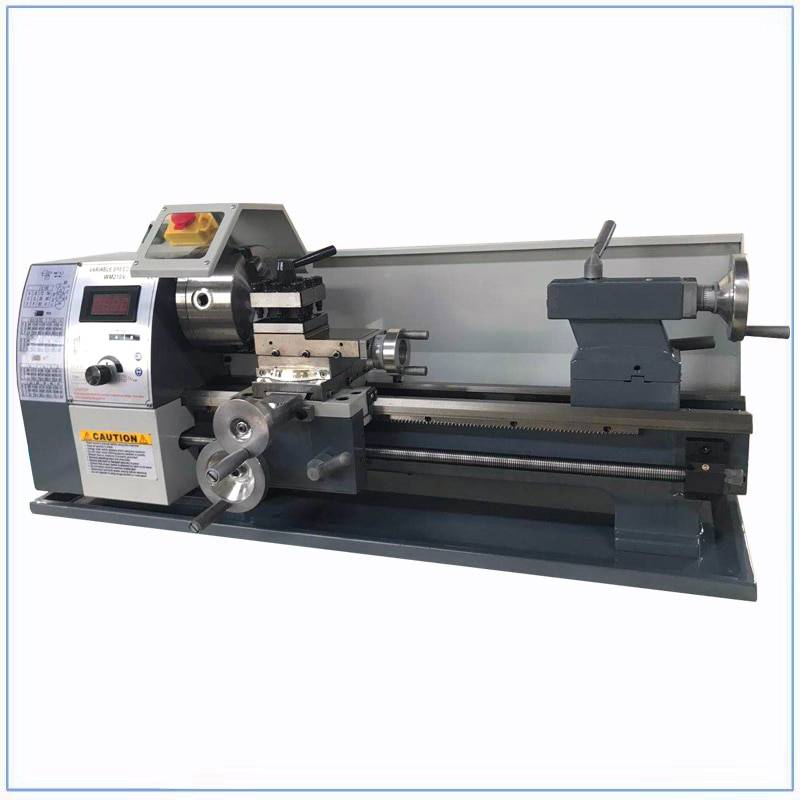

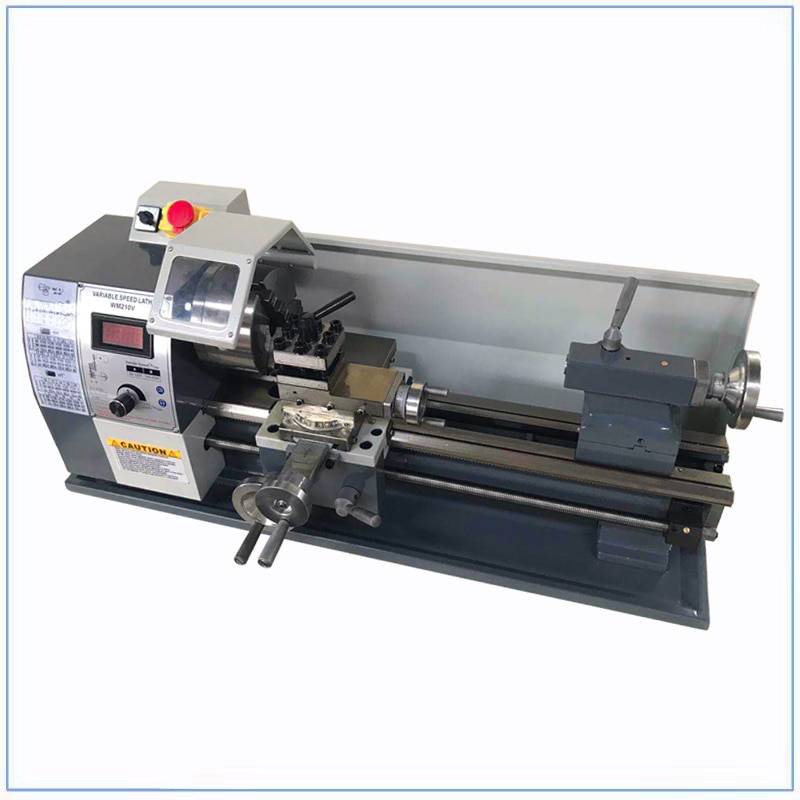

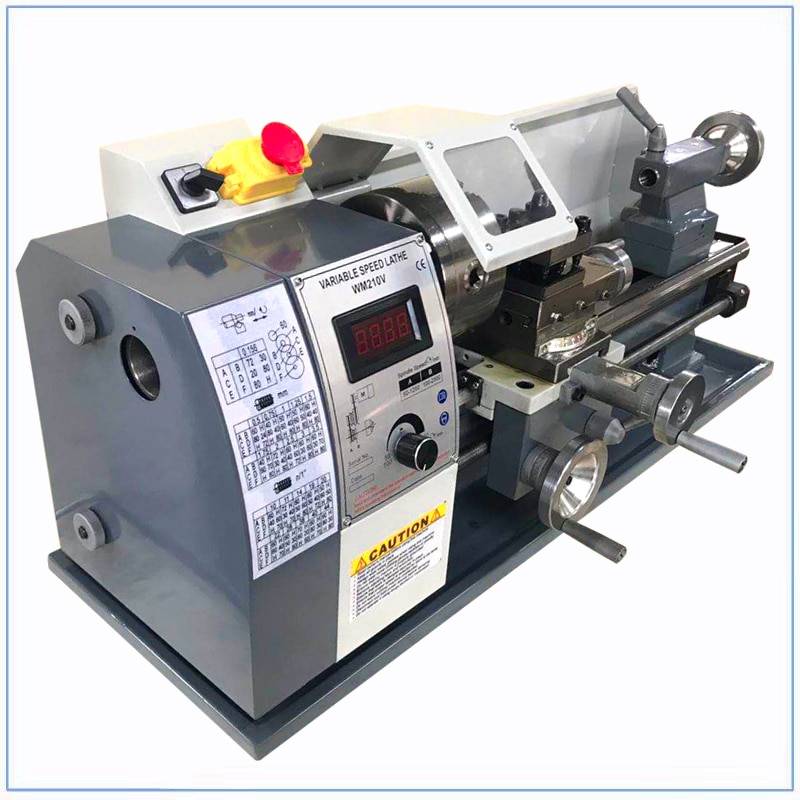

- Model: WM 210V*400
- Voltage : 220v
- Maximum Swing Diameter of The Bed: 210 mm
- Maximum Turning Diameter On the Pallet: 110 mm
- Distance Between Centers: 400 mm
- Bed Width: 100 mm
- Chuck Diameter: 125mm
- Spindle Through Hole: 38 mm
- Speed Control Mode: Stepless Speed Change
- Spindle Speed: 50-2500PRM
- Metric Thread Range: 0.5-3.0 mm
- Inch Threads:10-44TPI
- Tool Holder Station: Four-Position Tool Holder
- Maximum Travel Of the Knife Holder: 55 mm
- Medium Pallet Maximum Stroke: 75 mm
- Tail stock Sleeve Stroke: 60mm
- Tailstock taper: MT2
- Guarantee: 100% satisfaction guarantee

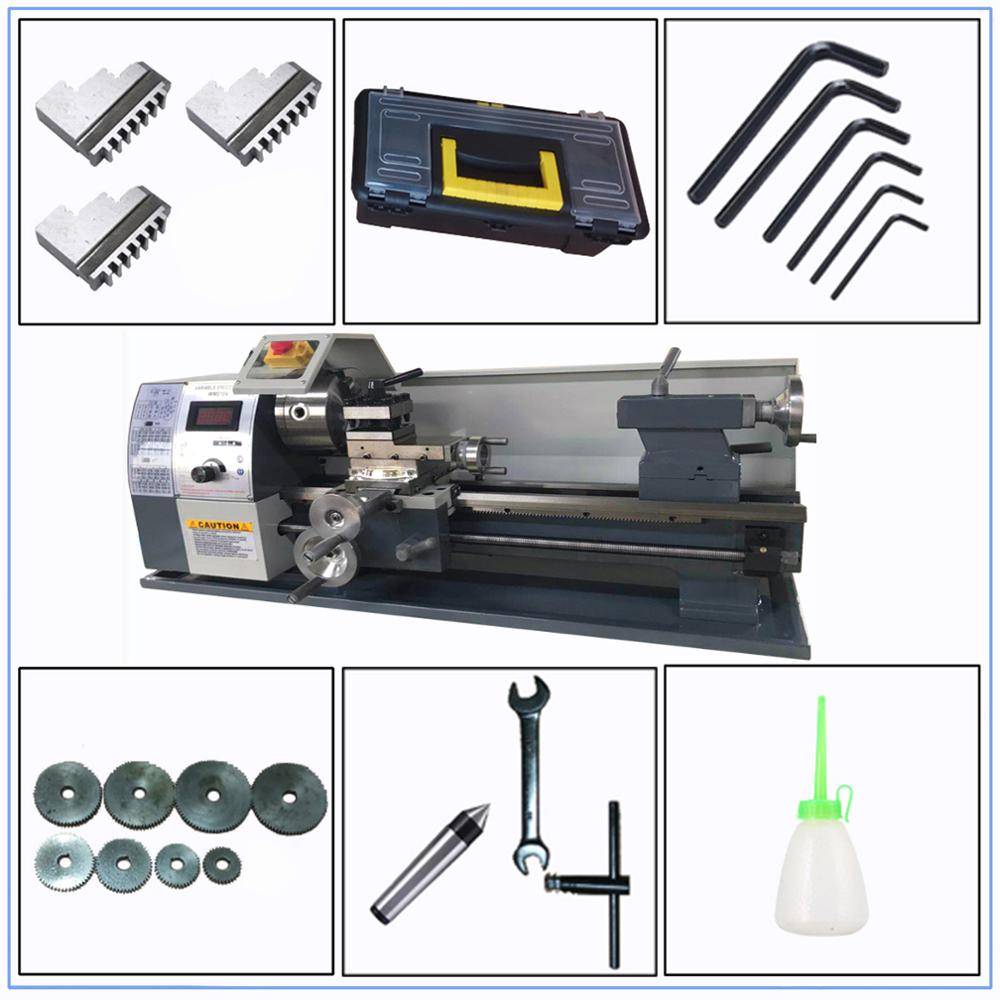

Package
- 1 X 8″ x 16″ Variable-Speed Lathe
- 1 X Tool Storage Box
- 1 X 3-Jaw chuck (Brand Sanou)+ 3 reverse cams
- 8 X Change Metal Gears
- 1 X Oil Can
- 1 X User Manual
- 1 X Dead Center
- 1 X Set of Accessories

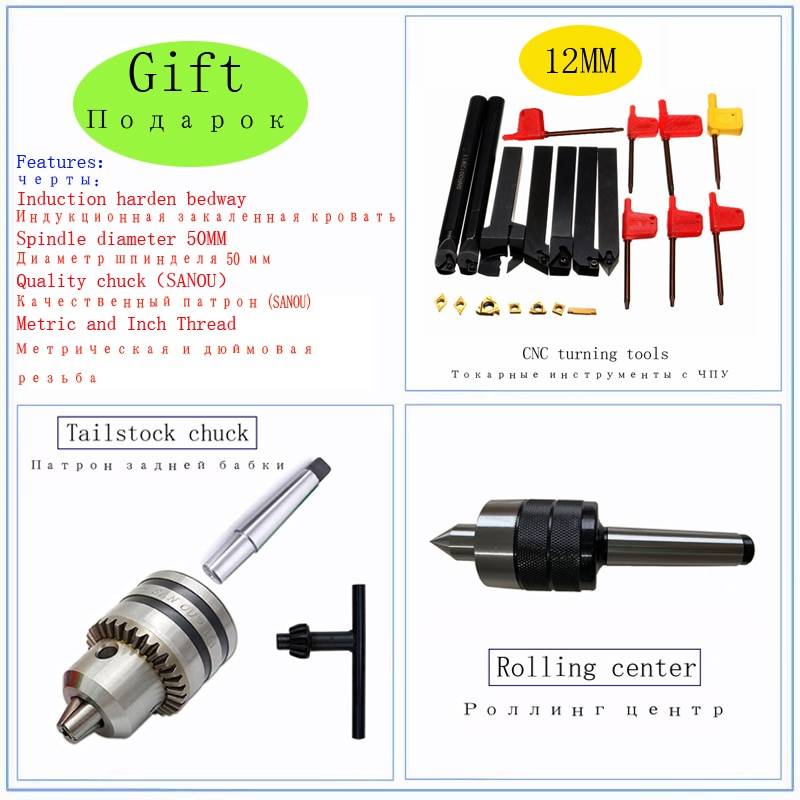

- 1 set of Cutter （12mm)
- 1X rotating center
- 1X drilling chuck

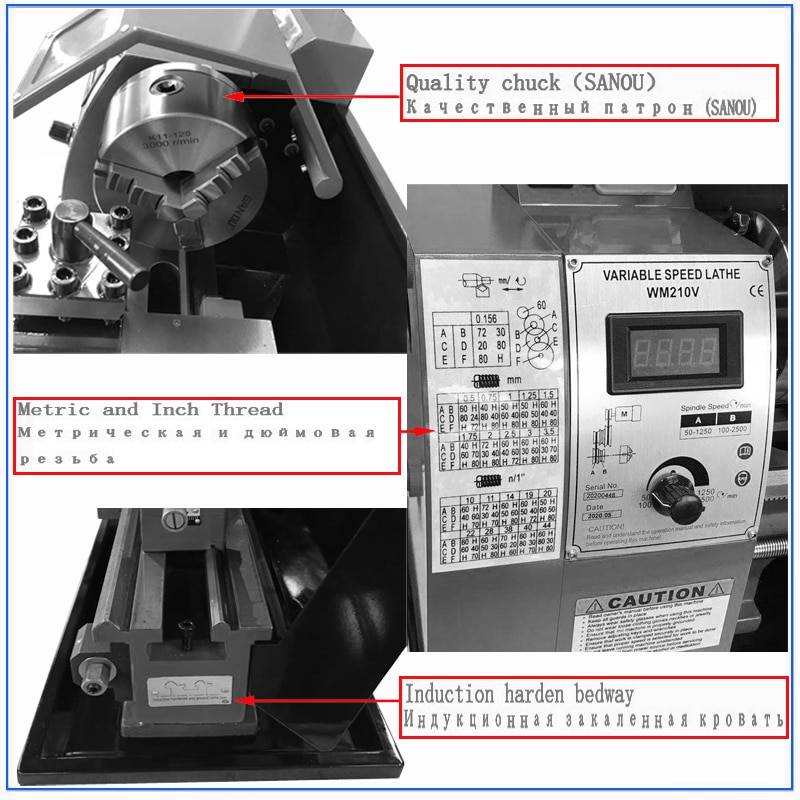

Threading and Feeding Table
This machine can do 10 kinds of Metric Thread and 10 kinds of Inch Thread
