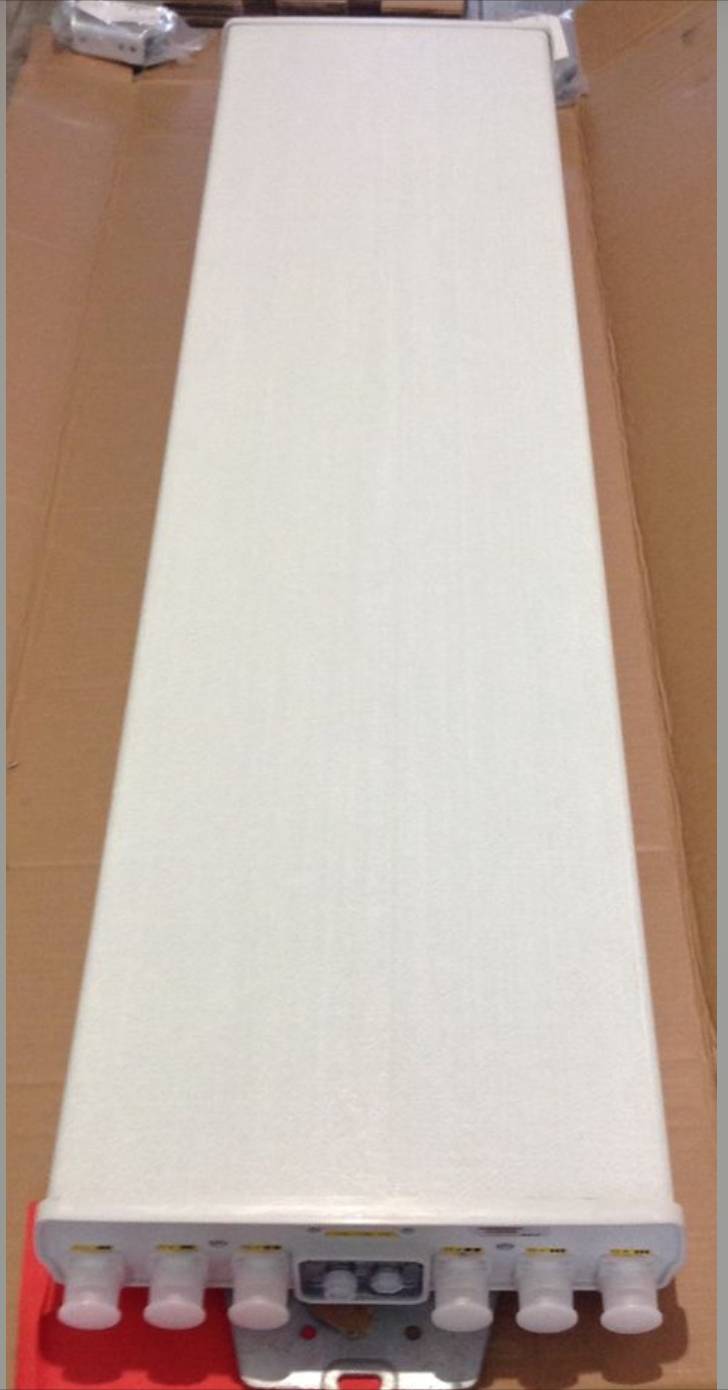

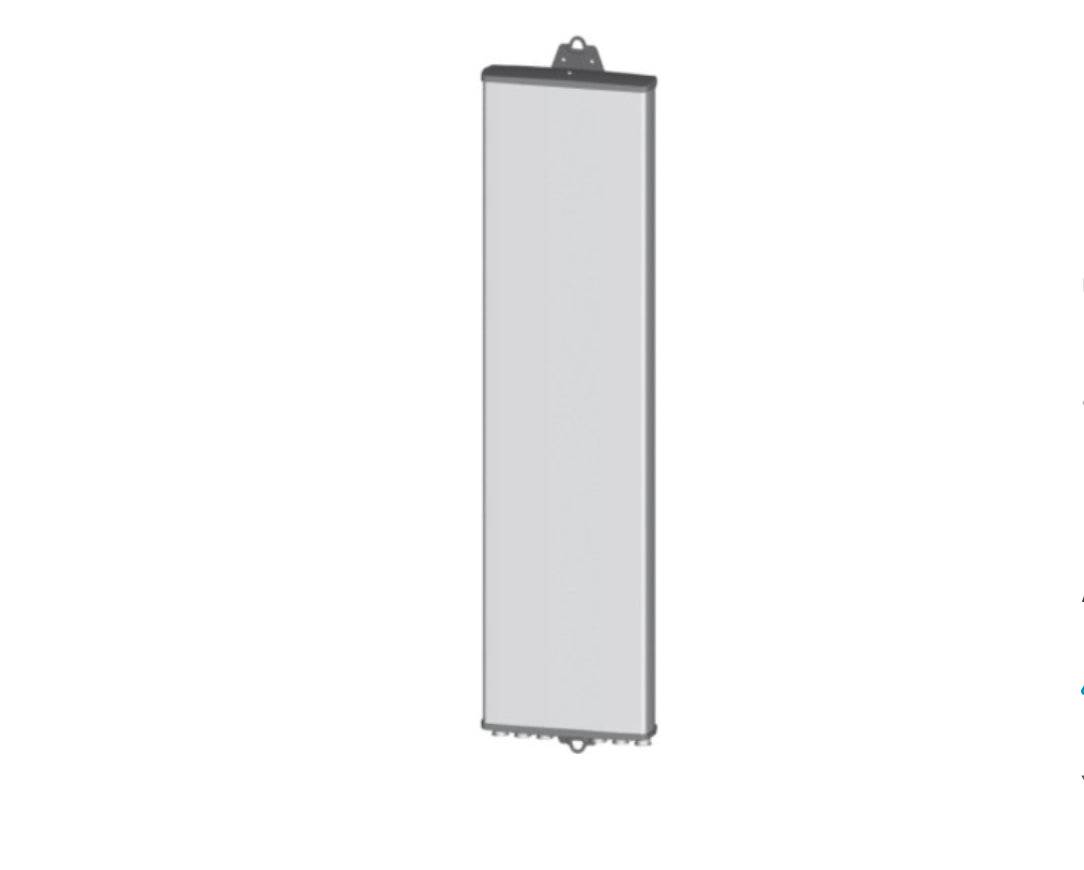

Kathrein 1710-2690 MHz Multi-band Panel Antenna (80010727)

Kathrein 80010727 1710-2690 MHz dual-polarized triple array panel antenna with Half-power Beam width of 65 degrees. Item Height 58.07 inches, Item Length 4.05 inches, and Item Width 14.88 inches. Jumper Not Included.

Key Features

• Specific Frequency 1710-1880 MHz / 1850-1990 MHz / 1920-2170 MHz / 2300-2400 MHz / 2490-2690 MHz.
• Gain dBi 17.6 dBi / 18.2 dBi / 18.3 dBi / 18.5 dBi / 18.5 dBi.
• Horizontal Beamwidth 67 deg / 64 deg / 62 deg / 59 deg / 57 deg.
• 25 dB Minimum Front Back Ratio, +/- 45 Degrees Polarization, 1.5:1 Maximum VSWR, 250 W Maximum Power, and DC Ground Lightning Protection.

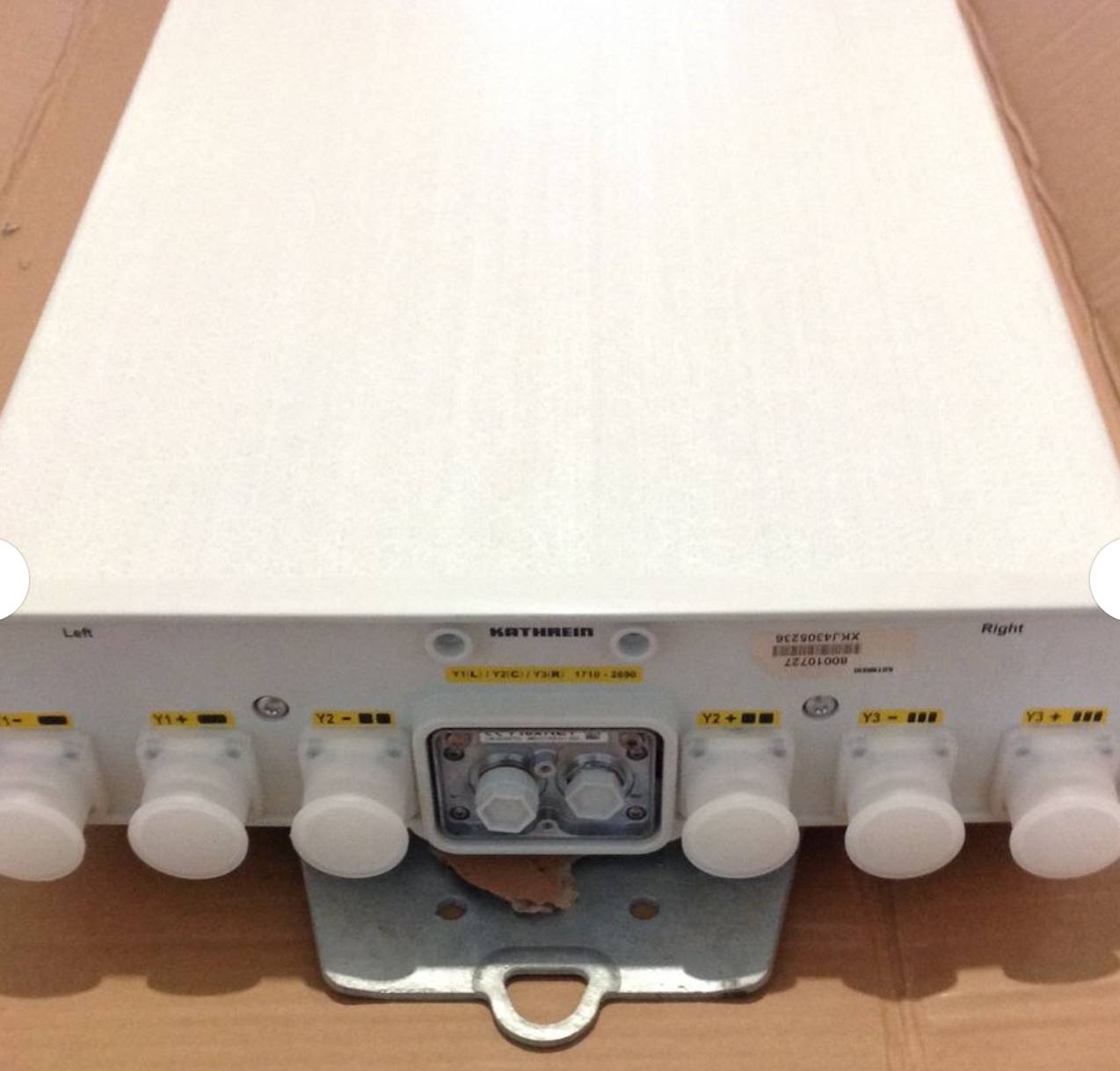

• Variable Electrical Downtilt, 7/16 DIN Female RF Connectors, Bottom Connector Placement, and 125 mile/h Maximum Rated Wind Velocity.
