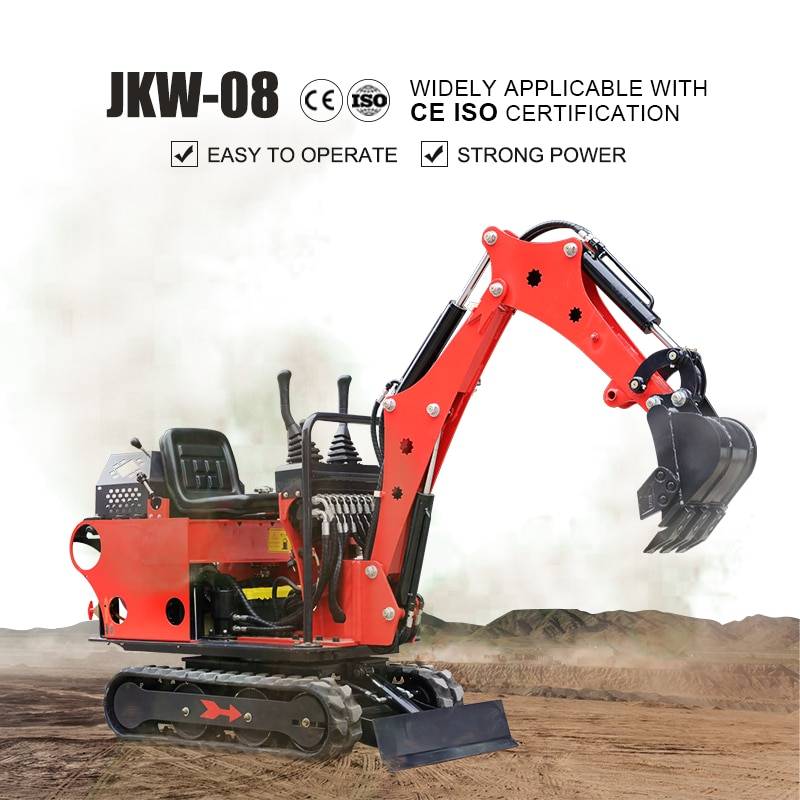

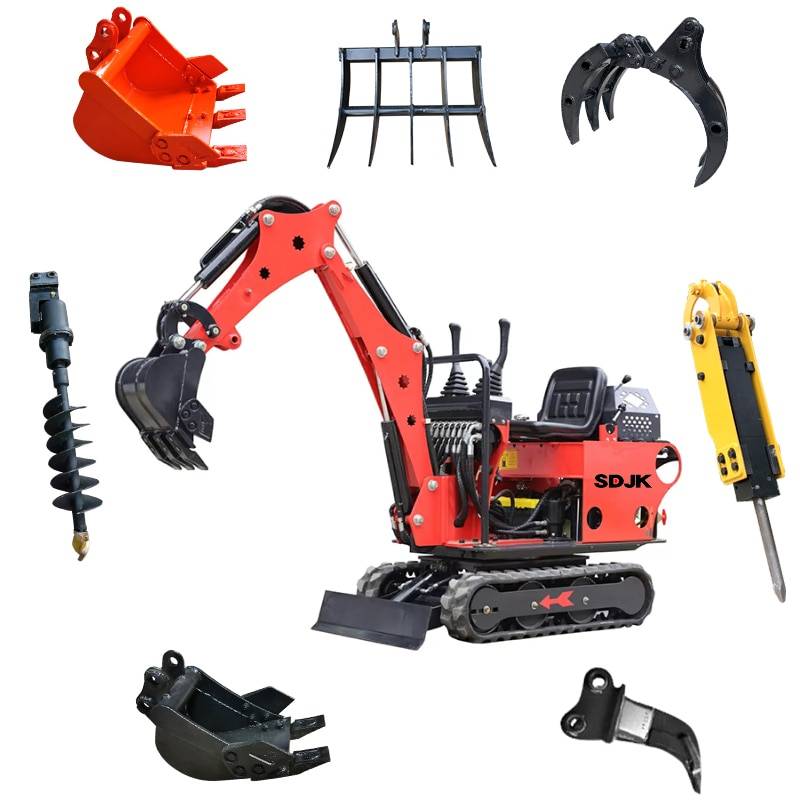

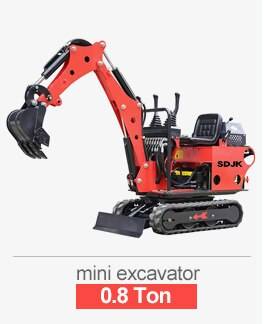

JKW-08 Mini Excavator Small Digger
0.8 Ton
1 Ton Micro Digging Machine With
Attachments
|

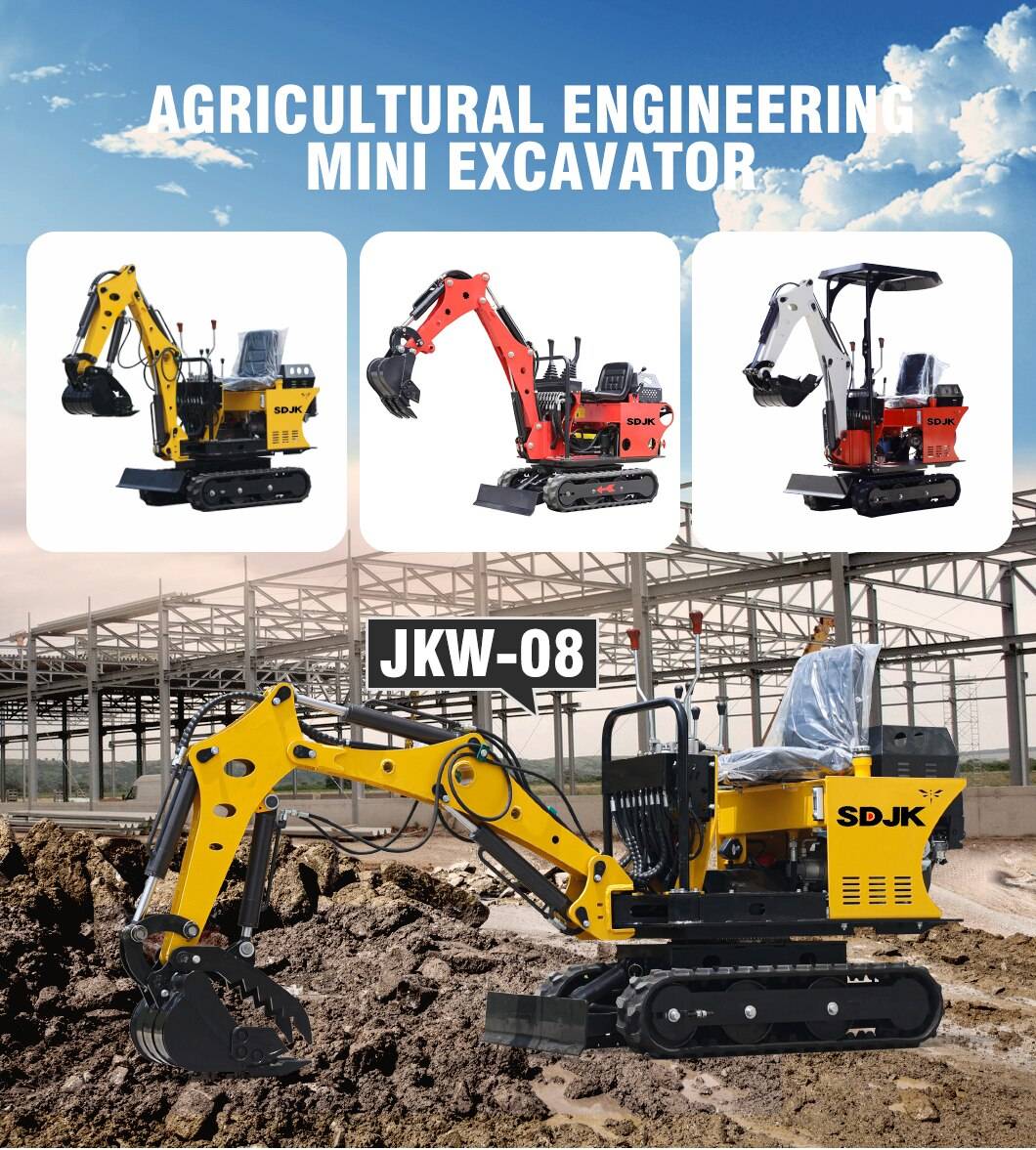

JKW-08 800KG MINI EXCAVATOR |
|||||
|
Total Measurement |
Scope Of Work |
Performance Parameter |
|||
|
Total length (during transportation) |
2500mm |
Maximum digging height |
2470mm |
Total Weight |
800kg |
|
Overall width (during transportation/operation) |
720mm |
Maximum unloading height |
1700mm |
Bucket capacity |
0.02m³ |
|
Total height (during transportation) |
1350mm |
Maximum digging depth |
1200mm |
engine model |
Popular Science 192F |
|
Dozer blade width (extend/retract) |
720mm |
Maximum vertical boom digging depth |
1120mm |
Displacement |
0.8L/H |
|
Dozer blade height |
180mm |
Maximum digging distance |
2650mm |
rated power |
12 horsepower 3600rpm |
|
Track center distance |
580mm |
Maximum digging distance |
2500mm |
Walking speed (high/low) |
1.5k |
|
Distance from the center of rotation to the tail of the track |
900mm |
Minimum turning radius of front end |
1400mm |
Swing speed |
8r/min |
|
Standard track shoe width |
150mm |
The minimum radius of gyration at the rear end |
900mm |
Swing angle |
360° |
|
Minimum ground clearance |
80mm |
Maximum bulldozing height |
155mm |
Gradeability |
35° |
|
Standard bucket width (with/without side teeth) |
300/250mm |
Maximum bulldozing depth |
130mm |
Ground pressure |
7.5Mpa |
|
Track length |
1150mm |
Ground pressure |
10kN |
||
|
Wheel spacing |
430mm |
Fuel tank volume |
15L |
||
|

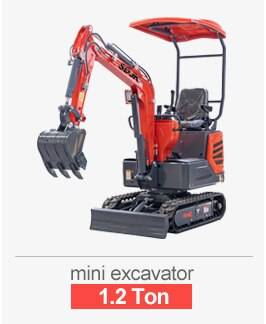

JKW-12 PLUS 1.2 TON MINI EXCAVATOR |
|||||
|
Total Measurement |
Scope Of Work |
Performance Parameter |
|||
|
Total length (during transportation) |
2600 mm |
Maximum digging height |
2580 mm |
Total Weight |
1200 kg |
|
Overall width (during transportation/operation) |
860 mm |
Maximum unloading height |
1830 mm |
Bucket capacity |
0.022m³ |
|
Total height (during transportation) |
1480 mm |
Maximum digging depth |
2000 mm |
engine model |
192FA |
|
Dozer blade width (extend/retract) |
860 mm |
Maximum vertical boom digging depth |
1600 mm |
Displacement |
0.499 L |
|
Dozer blade height |
210 mm |
Maximum digging distance |
2850 mm |
rated power |
8.2 KW/rpm |
|
Track center distance |
680 mm |
Maximum digging distance |
2700 mm |
Swing speed |
11 r/min |
|
Distance from the center of rotation to the tail of the track |
180 mm |
Minimum turning radius of front end |
1290 mm |
Gradeability |
25(30)° |
|
Standard track shoe width |
370 mm |
Maximum bulldozing height |
260 mm |
Ground pressure |
0.35 kpa |
|
Minimum ground clearance |
360/ 310 mm |
Maximum bulldozing depth |
190 mm |
Ground pressure |
6.5 KN |
|
Standard bucket width (with/without side teeth) |
1200 mm |
Fuel tank volume |
5.5 L |
||
|
Track length |
670 mm |
||||
|
Wheel spacing |
|||||
