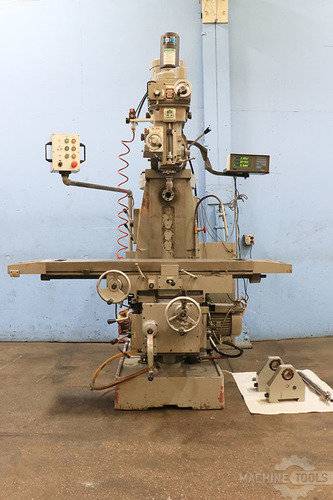

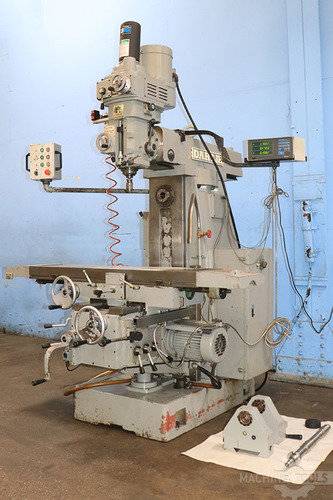

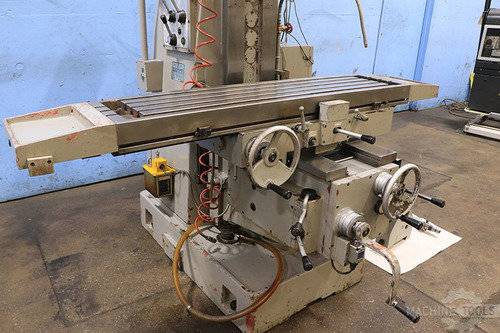

53″ Table 5HP Spindle Dahlih DL-GH950 VERTICAL MILL, Vert & Horiz Spindles, #40 Taper, Tbl Feeds & Rapids
| Table Size-W | 304.8 mm |
| Table Size-L | 1,346.2 mm |
SPEC SHEET
DAHLIH COMBINATION VARIABLE SPEED TURRET TYPE VERTICAL AND HORIZONTAL MILL MODEL: DL-GH950, S/N: 85001, YEAR: 1985 SPECIFICATIONS: TABLE WORKING SURFACE: ………………… 12″ x 53″ RANGE: LONGITUDINAL: ………………….. 34″ CROSS: ………………………………. 12″ VERTICAL (KNEE): ……………………… 16″ TAPER IN HORIZONTAL SPINDLE: …………… N.S.T. 40 HORIZONTAL SPINDLE SPEEDS: (12) ………… 50 – 1485 RPM LONGITUDINAL & CROSS FEEDS: (12) ……….. .5 – 42 IPM KNEE FEEDS: (12) ……………………… .2 – 16 IPM TAPER IN VERTICAL SPINDLE: …………….. N.S.T. 40 QUILL TRAVEL: ………………………… 6″ POWER QUILL FEEDS: (3) …….. 0.0014, 0.0028, 0.0056 IPR HEAD SWIVEL: …………………………. ± 45° INF VAR VERT SPINDLE SPEEDS: …………… 80 – 3800 RPM HORIZ TRAVEL OF RAM: ………………….. 20″ SWIVEL OF RAM: ……………………….. 360° APPROX WEIGHT: ……………………….. 5,500 LBS.
APPROX DIMENSIONS: ……… 75″ L-R x 83″ F-B x 93-1/2″H EQUIPPED WITH: – VARI-SPEED VERTICAL HEAD MOUNTED ON SWIVEL RAM – AIR ACTUATED POWER DRAW BAR – HORIZONTAL SPINDLE – POWER RAPID TRAVERSE – COOLANT – MITUTOYO 3-AXIS DIGITAL READ OUT – SWING PENDANT CONTROL – ARBOR SUPPORT – 40 TAPER ARBOR – 2 HORSE POWER TABLE FEED – 5 HORSE POWER VERTICAL SPINDLE DRIVE – 5 HORSE POWER HORIZONTAL SPINDLE DRIVE
