Model |

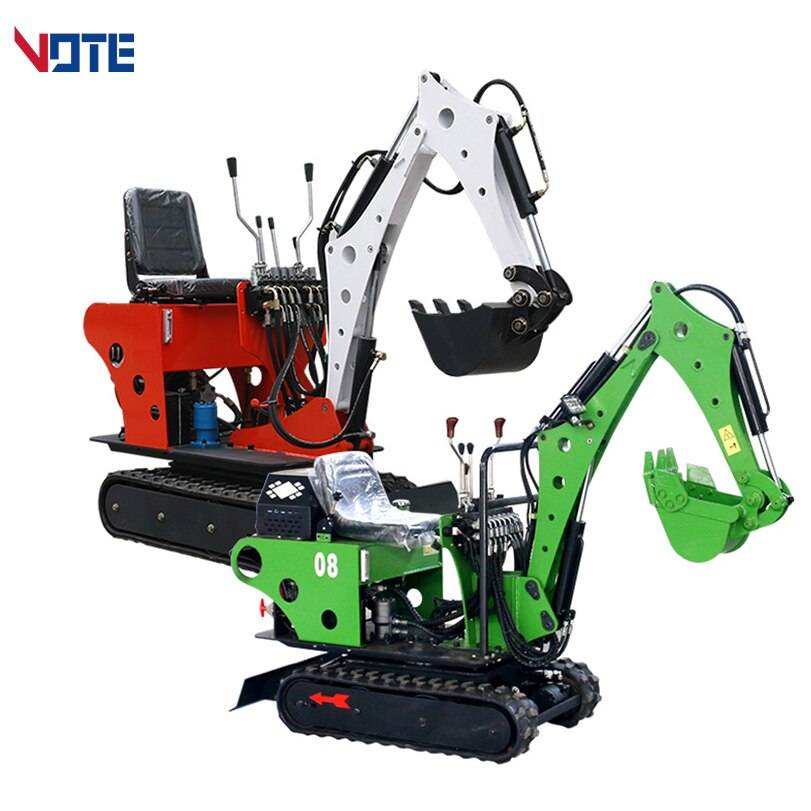

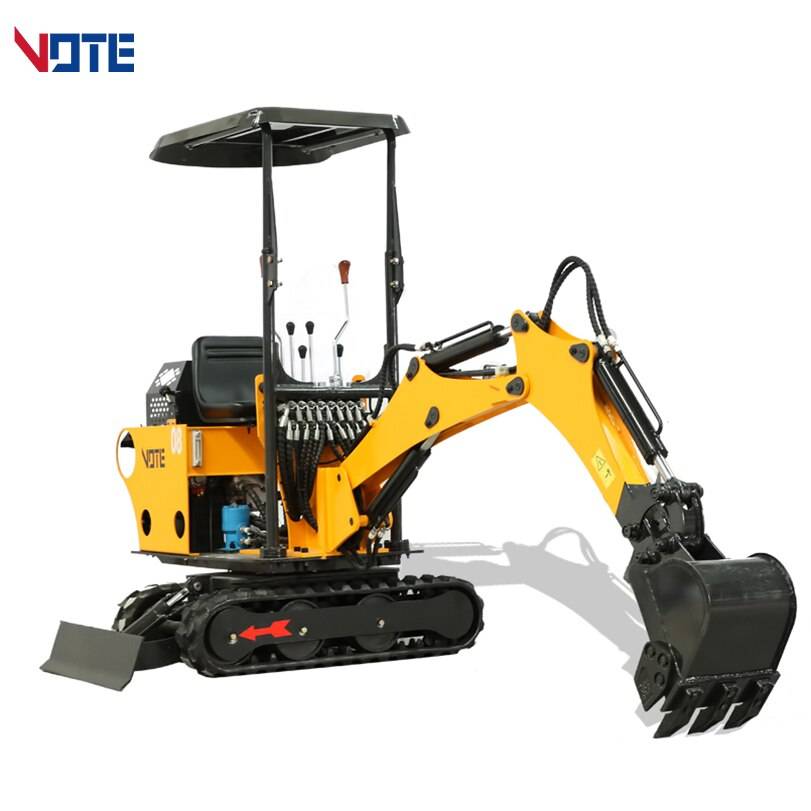

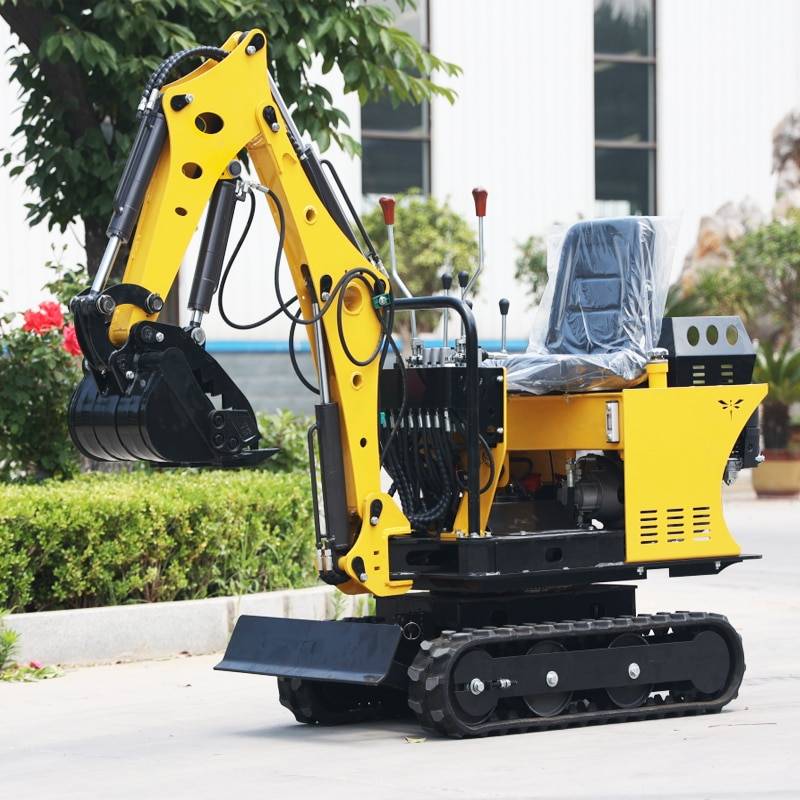

VTW-08 |
|
Total length (during transportation) |
2500mm |
|
Overall width (during transportation/operation) |
720mm |
|
Total height (during transportation) |
1350mm |
|
Dozer blade width (extend/retract) |
720mm |
|
Dozer blade height |
180mm |
|
Track center distance |
580mm |
|
Distance from the center of rotation to the tail of the track |
900mm |
|
Standard track shoe width |
150mm |
|
Minimum ground clearance |
80mm |
|
Standard bucket width (with/without side teeth) |
300/250mm |
|
Track length |
1150mm |
|
Wheel spacing |
430mm |
|
Maximum digging height |
2470mm |
|
Maximum unloading height |
1700mm |
|
Maximum digging depth |
1200mm |
|
Maximum vertical boom digging depth |
1120mm |
|
Maximum digging distance |
2650mm |
|
Maximum digging distance |
2500mm |
|
Minimum turning radius of front end |
1400mm |
|
The minimum radius of gyration at the rear end |
900mm |
|
Maximum bulldozing height |
155mm |
|
Maximum bulldozing depth |
130mm |
|
Total Weight |
700kg |
|
Bucket capacity |
0.02m³ |
|
engine model |
Popular Science 192F |
|
Displacement |
0.8L/H |
|
rated power |
12 horsepower 3600rpm |
|
Walking speed (high/low) |
1.5k |
|
Swing speed |
8r/min |
|
Swing angle |
360° |
|
Gradeability |
35° |
|
Ground pressure |
7.5Mpa |
|
Ground pressure |
10kN |
|
Fuel tank volume |
15L |
